Deciding which boiler will make an efficient and practical fit with your home and lifestyle can be confusing. The images below show the main system types, how they work, their advantages and what kind of homes they work best in.
If your new boiler is going to be fitted onto your existing system, please consider the cleanliness of your existing pipework and radiators as this could cause damage to your new boiler.

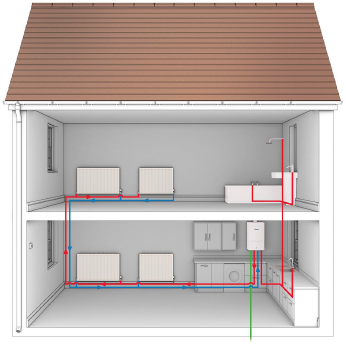

A combination or 'combi' boiler is both a high efficiency water heater and a central heating boiler in a single compact unit. Combi boilers heat water directly from the mains when you turn on a tap, so you won’t need a hot water storage cylinder or a cold water storage tank in the roof space.
They are also very cost-effective and energy-efficient as water is heated instantly rather than being heated and then stored in a cylinder. An added benefit is that hot water is delivered at mains pressure, which means that you could get a powerful shower without the need for a separate pump.
Compact sizes make combi boilers perfect for smaller properties
Ideal where there is little or no loft space
No need for a hot water cylinder allows increased living space
No cold water storage tank frees up a loft for conversion
No risk of loft pipework freezing
Less pipework in the home makes installation typically cheaper

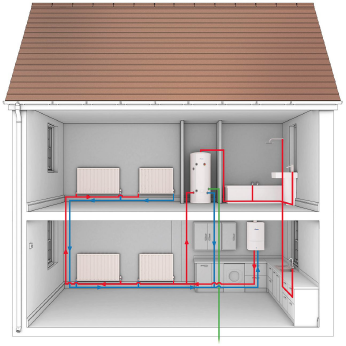

System boilers require a cylinder for storing hot water, however the major heating and hot water system components are built into the boiler itself, making it quicker and easier to install. In addition, there is no need for a tank in the loft, so it can be an option in a home with little or no loft space or where the space is earmarked for a conversion.
These boilers are also compatible with solar water heating systems, which deliver environmental benefits as well as lower energy bills.
Ideal for homes with more than one bathroom
Constant supply of hot water to any number of taps at the same time
No need for a loft tank, freeing up space and eliminating worries about leaks or frost damage
Economical to run
Built-in components makes installation quicker and neater
Regular boilers (sometimes known as traditional, conventional or heat only boilers) are ideally suited to homes that already have a traditional heating and hot water system which is linked to a separate hot water cylinder. These boilers also need a cold water storage tank in the loft to feed the hot water cylinder as well as a tank that maintains the water level of the central heating system.
A regular boiler may be the best option for replacing an existing boiler if the property has an older radiator system, as it might not be able to cope with the higher water pressure that is delivered by system or combi boilers.
Perfect for homes where a lot of hot water is used at the same time
Ideal where there are two or more bathrooms
A good option in areas where water pressure is low
Compatible with solar water heating systems for a lower carbon footprint and lower energy costs
